MEDIA CONTROLS [G2357598]

WARNING:

Make sure the relevant safety warnings have been read and understood before driving the vehicle. See MEDIA SAFETY.

From the HOME menu screen, select the Media soft key. See TOUCHSCREEN HOME MENU.

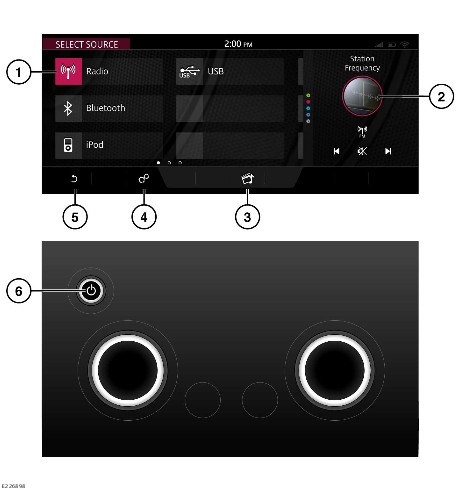

  1. Media source: Touch to select the media source.
  2. Side panel: Displays the last used feature.
  3. Media icon: Touch to select the media system. If the media system is already switched on, touch to select the media source.
  4. Settings icon: Select Audio Settings, or specific media settings, via the SETTINGS pop-up menu. See AUDIO SETTINGS.
  5. Return icon: Touch to return to a higher menu level.
  6. Power and volume control:
    1. Press to switch the media system on or off.
      NOTE:

      The media system operates with the ignition on or off, but always switches off when the ignition is switched off. Switch the system on again, if required.

    2. Rotate to adjust the volume level. The touchscreen displays the volume level.
      NOTE:

      If the volume is turned to zero while a media source is playing, the media pauses play. Play resumes when a greater volume is selected.
