STORAGE COMPARTMENTS [G3132320]

WARNING:

Make sure that any items stored in the vehicle are secure and cannot move. If the vehicle is involved in an accident or is subject to sudden braking or a change of direction, loose items can cause serious injury.

WARNING:

Do not drink while driving. Driver distraction can lead to accidents, potentially causing serious injury or death.

WARNING:

Do not remove items from, or place items in, the cup holders while driving. Driver distraction can lead to accidents, potentially causing serious injury or death.

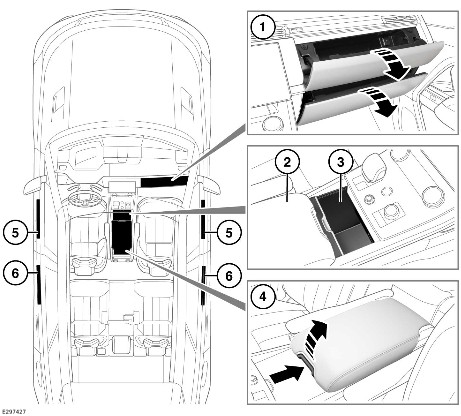

Front storage compartment locations:

  1. Glovebox: Press the up-down arrow switch above the upper glovebox to open and close.
  2. Large storage bin, located under centre armrest. Push catch, then pull armrest upwards to access.
  3. Small item or phone storage. Slide fore and aft to access additional storage.
  4. Front armrest: lift to access storage compartment.
  5. Front door storage.
  6. Rear door storage.

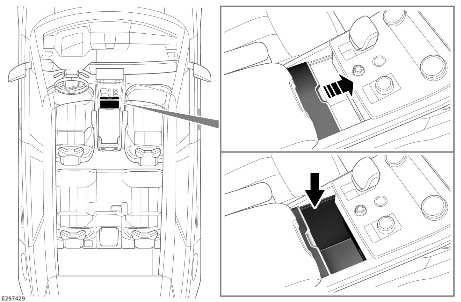

Centre console storage

Centre console storage is provided as shown. Slide the lid to access.

Front centre console fridge

The front centre console fridge is located under front seat armrest. The fridge can hold four 500 ml bottles or four 330 ml cans. A white border light around the upper perimeter of the unit indicates the fridge is active and provides illumination for the contents. Press the control button under the armrest to select from the following modes:

  1. Boost - 2 LEDs lit: Rapidly chills compartment towards -5°C (28°F), but stops when compartment reaches 5°C (40°F). Use to rapidly cool drinks.
  2. Normal - 1 LED lit: Maintains steady temperature of 5°C (40°F).
  3. Off - no LEDs lit: No cooling provided. Suitable for normal storage.
NOTE:

The fridge reverts to its previous setting when the vehicle is started.

Vehicles with front fridge

Contains fluorinated greenhouse gases in a hermetically sealed equipment (EN)

R134a: 0.015 kg

GWP: 1430
