Electrical Reference Library (ERL) - Connector, Location, Pinout, Wires (G4352314)

The Electrical Reference Library (ERL) contains a full library of connectors. The ERL is available as a tab, or accessible through hyperlinks in the Interactive Electrical Wiring Diagram (iEWD).

Identification of Connector Location and Pinout

On the image shown above the male connector in the schematic is indicated with a rounded shape. The female connector is drawn with a squared shape.

To view connector details on the iEWD hover the mouse pointer over the connector number and select using the standard mouse functionality. The details displayed include:

• Graphic of the Connector Face-view
• Graphic of the Location
• An Overlay Recommendations table
• A Key Features table

View the list of connectors to the right of the location image to see the details for each annotated connector.

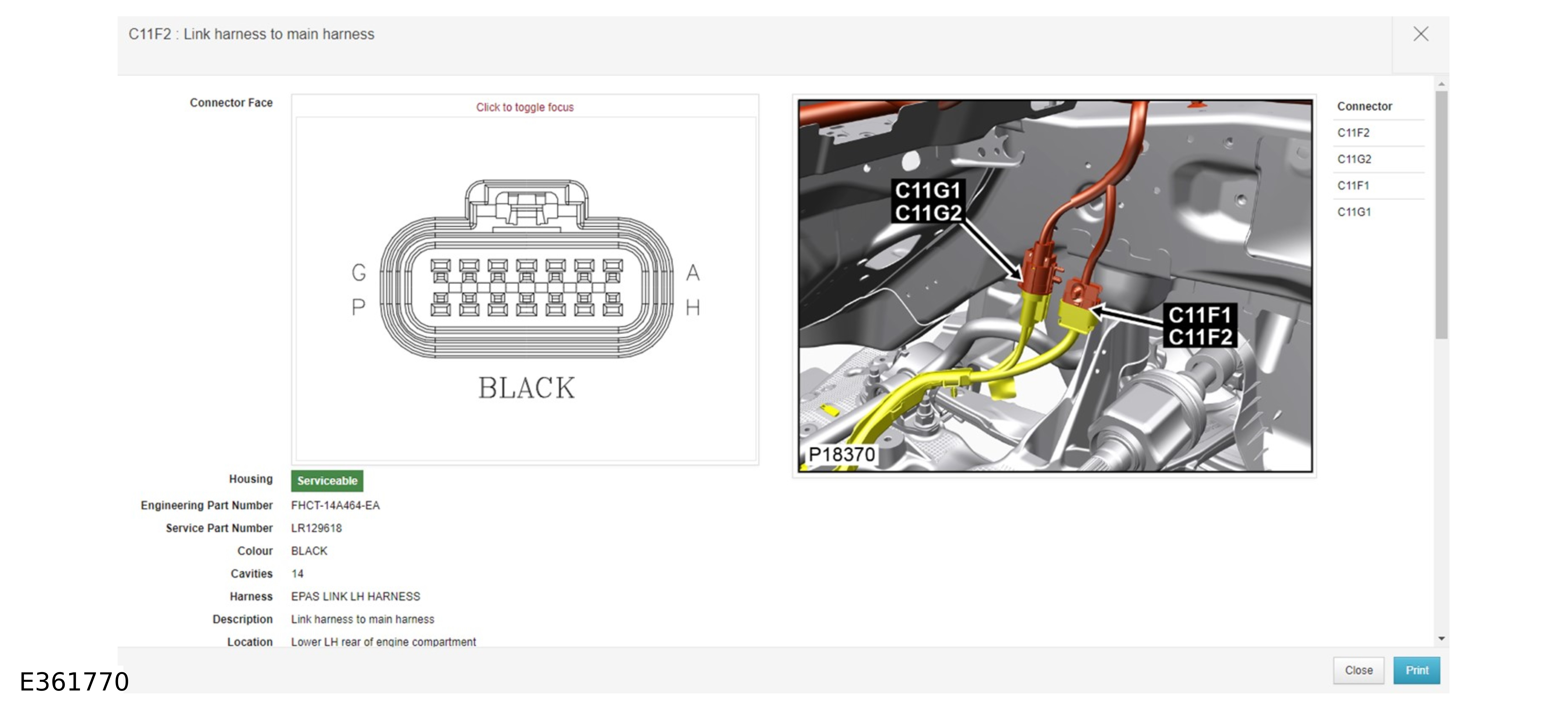

Face View

The Face View graphic shows an outline of the connector housing, viewed from the front, showing pin numbers if applicable.

Location Image

This image shows the location of the subject connector. For convenience, some images identify more than one connector, and the designated reference which is prefixed 'C', or 'G' in the case of some ground connections.

For some connectors it is not possible to represent all possible conditions. An image may show a left-hand condition, the right-hand condition may be similar and is identified as such using a Qualifier, for example: left hand drive (LHD) condition illustrated.

References to the LH or RH side given in this document are made when viewing the vehicle from the rear.

Connector Details

• Housing - Serviceable - the part identified is available through the normal parts ordering process
• Housing - Not Serviceable - the part identified is not available
• Engineering / Service Part No. – the part number as it appears on the harness drawing where applicable
• Color – if applicable, the color of the connector housing is shown. Natural are connectors with a clear/translucent plastic finish
• Cavities – the number of cavities within the connector
• Harness – the harness description
• Description – usually derived from the component to which the connection is made
• Location – used in conjunction with the photograph to indicate the location of the connector

Overlays

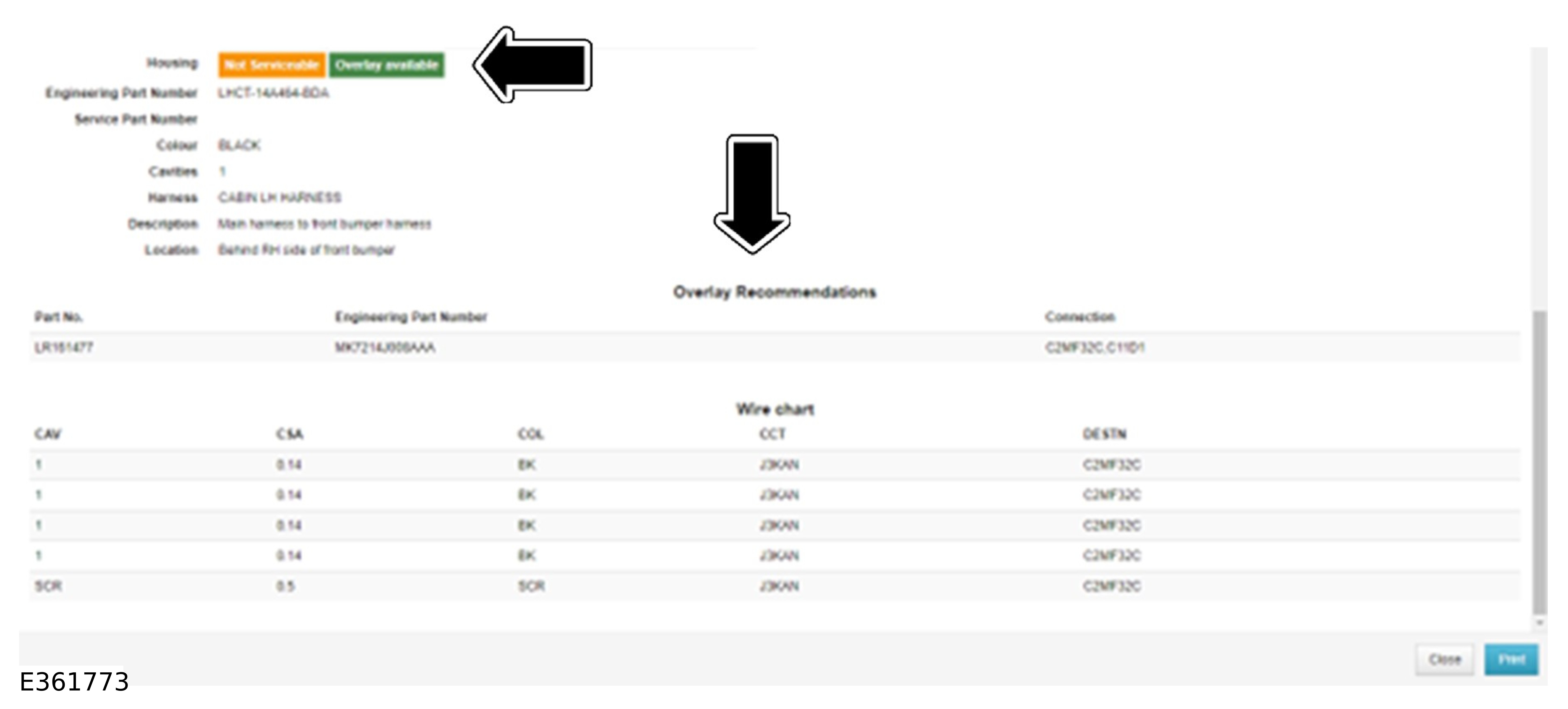

If Housing status is Not Serviceable Overlay Available, a table of Overlay Recommendations will be listed beneath the connector information. The overlay parts can be ordered through the JLR Parts Catalogue

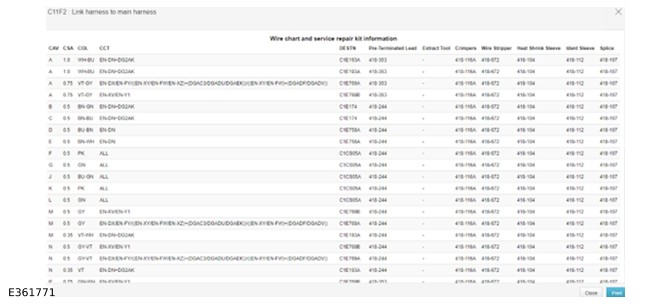

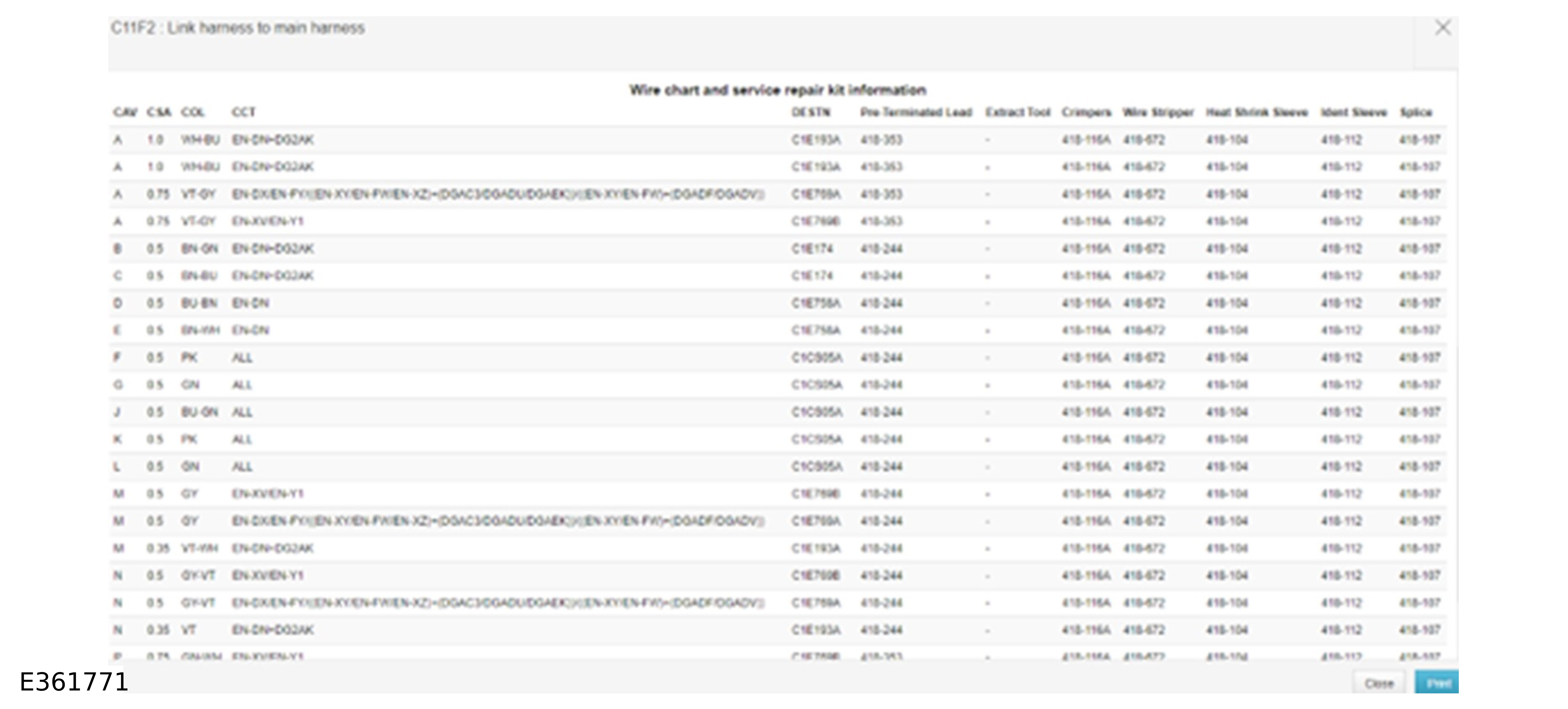

Wire Chart and Service Repair Kit Information

The Wire Chart (Pin-out table) first five columns provide specific wiring information related to each connector.

• Cav - the connector pin (cavity) number. Wires may not be installed to all cavities
• CSA - the cross sectional area of the wire in mm²
• Col - the color of wire populating the connector pin
• Cct - identifies the model or option which uses the wire. 'ALL' means applicable to all models in the range installed with the feature or system. In instances where different models, features or systems require different color wires to be installed in a cavity, each instance of the cavity is included in the pin-out table
• Destn - the destination of the wire

The last seven columns detail service repair information where applicable. When the seven columns are not shown, no service repair information is available for that particular connector. If a connector uses more than one type of terminal (pin), different service repair information may be required.

• Pre-Terminated Lead - pre-terminated leads (including bespoke harnesses where applicable)
• Extract Tool - connector pin extractor tools
• Crimpers - terminal applicator tool
• Wire Stripper - wire cutter / stripper
• Heat Shrink Sleeve - adhesive-lined heat-shrink sleeving
• Ident Sleeve - wire color identification sleeves
• Splice - splice connectors

Wire color codes on vehicle harnesses
