Download and Installing JLR Software (G4407426)

Download and Install JLR diagnostics on the FZ55 MK3

When the Panasonic settings have been completed it is ready for the JLR software to be downloaded and installed. For more information on setting up a JLR approved Panasonic machine select the link below;

(TOPIx Cloud Diagnostics/Download and Installation).

Before you start you will need:

  1. A power supply for the FZ55
  2. Any outstanding Windows updates must be completed
    • If Windows has any outstanding updates this will appear as a red dot on the arrows icon in the toolbar in the bottom right of the PC main screen
  3. A Wifi connection

Step 1 - Download the Installation files

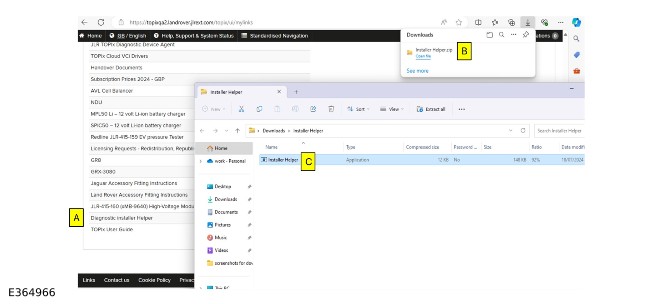

E364966
  1. From the start up screen open the web browser, search and open JLR TOPIx.
  2. From the TOPIx Home Page select the TOPIx Links Page tab on the bottom left corner of the screen,
  3. From the links page select Diagnostic installer Helper. This will download the InstallerHelper zip file into the downloads area of your FZ55.
  4. Select the zip to open the installer. If the ZIP file will not open - check and complete any windows updates. Reboot the system following this step.
  5. If Microsoft Defender objects to the update it will show a blue screen stating Windows protected your FZ55. Select More Info.
  6. The blue window will display Application: Installer Helper.exe, from unknown publisher, select the button Run anyway.
  7. Install Helper window will open with five links numbered one to five, plus a link titled Download 1-5. If you have a new machine or are performing a new install it is recommended that you select the Download 1-5 link.
  8. After selecting Download 1-5, the Chrome Downloads tab will open with 4.exe files listed.
  9. Select the blue oval Download Chrome icon in the center of the Chrome screen. This will add ChromeSetup.exe (Chrome) to the .exe files listed in downloads.
  10. If Microsoft blocks any of the files follow the instructions below;
    • Microsoft will display another error a message, for example Make sure you trust JLR Launcher before you open it, select the Show more pull down arrow, and then select Keep anyway.
    • Microsoft may stop one or more of the downloads with an error message, for example; JLR Launcher is not commonly downloaded. Make sure you trust JLR Launcher... Select the three dots to the right of the message, and then select the option Keep.
  11. Repeat this procedure for all other blocked file downloads.

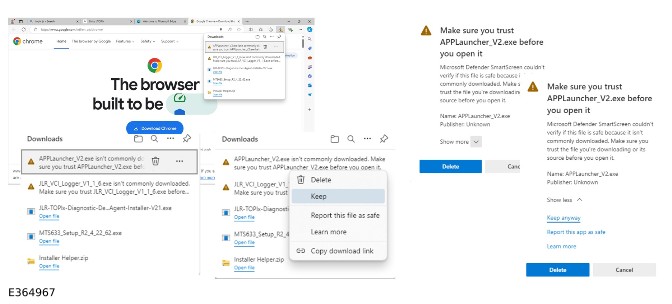

E364967

Step 2 - Install the files onto the FZ55 MK3

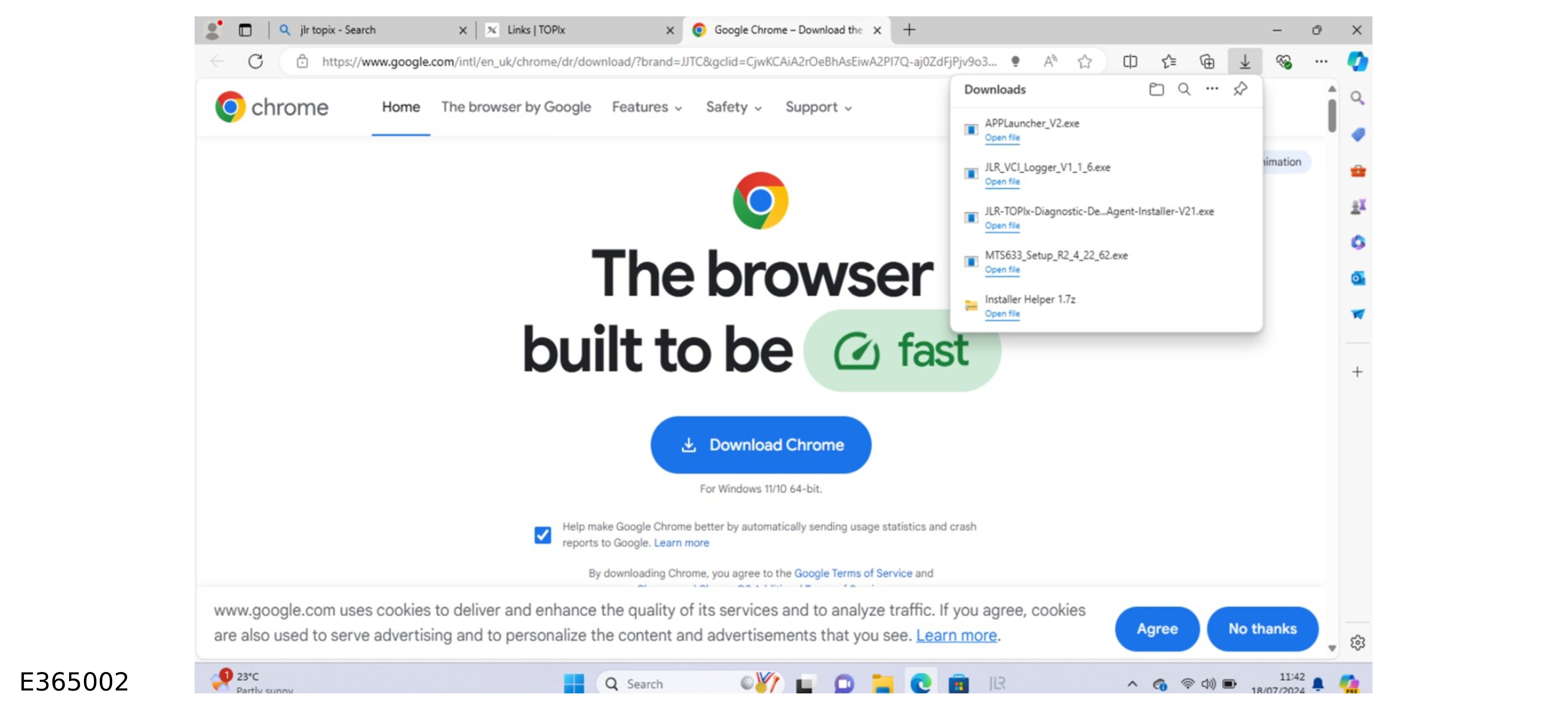

E365002
  1. The .exe files now appear in the downloads
    • MTS663_Setup_(version no.).exe (Bosch Vehicle Communication Interface (VCI) Drivers)
    • JLR-TOPIx-Diagnostic-De....Agent-Installer-(version no.).exe (TOPIx Cloud)
    • JLR_VCI_Logger_(version no.).exe (Controller Area Network (CAN) Logger)
    • JLR Launcher (JLR Launcher)
    • ChromeSetup.exe (Chrome)
  2. Install all five executable files (.exe's) onto your FZ55, by selecting the blue open file link next to each of the downloads.
    • Install the Bosch VCI Drivers - MTS663_Setup_(version no.).exe - this has an approximate load time of 30 seconds
    • Install TOPIx Cloud JLR-TOPIx-Diagnostic-De....Agent-Installer-(version no.).exe - this has an approximate load time of 240 seconds (including updates)
    • Install CAN Logger JLR_VCI_Logger_(version no.).exe. After VCI_Logger is installed, to complete installation of the logger config file go to desktop and select the cog icon titled JLR_VCI_L... The icon will disappear from the desktop after it has installed. This has an approximate load time of 48 seconds
    • Install JLR Launcher - has an approximate load time of 230 seconds. The system will reboot during this step.
    • Install Chrome ChromeSetup.exe. Select Do not sign in to Chrome - this has an approximate load time of 30 seconds.
  3. When Chrome is installed set Chrome as your Default Browser.
    • Go to the - windows symbol in the tool bar/settings/Apps/Default apps Select 'Chrome' and then select 'Set default'.
  4. The JLR Launcher page will now appear with the installed icons. Any other JLR diagnostic tools can also be installed to appear in this page.

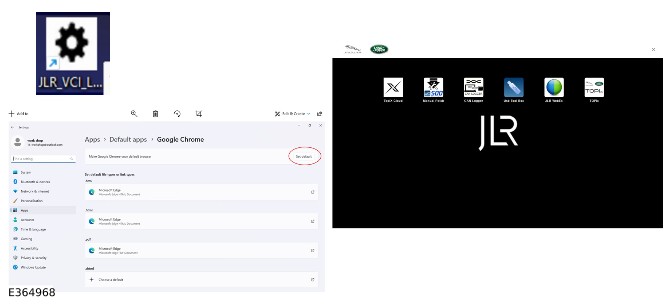

E364968

For instructions on how to install the JLR software, and troubleshooting support take a look at the links below;

  • (Frequently asked questions/3. Subscriptions and installation).
  • (TOPIx Cloud Diagnostics/Download and Installation).
NOTE:

Microsoft can change how these downloads function at anytime so these instructions may need to be updated.
